Conway's Game of life [gnuplot]

Wednesday, October 10, 2018

Cellular Automaton gnuplot YouTube

t f B! P L
　

Contents[hide]

YouTube

lifegame.plt

reset
#=================== Parameter ====================
Nx = 150 # Number of cells (width)
Ny = 75 # Number of cells (height)
N = Nx*Ny # Number of cells
#=================== Setting ====================
set terminal gif animate enhanced delay 8 font "Times" 20 size 1280, 720
set output "lifegame.gif"
unset key
unset border
set xr[0:Nx]
set yr[0:Ny]
unset xtics
unset ytics
set size ratio -1
unset grid
stop = 150 # Stop time
array a[N] # Old generation
array b[N] # New generation
gen(i) = sprintf("Generations: %5d\n", i) # Counter
#=================== Draw initiate state using random ====================
do for [i=1:Ny] {
do for [j=1:Nx] {
m = Nx*(i-1)+j
a[m] = ceil(rand(0)-0.5)
if(a[m]==0){# dead
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "white"
} else {# alive
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "black"
}
}
}
# Draw number of generations
set label 1 center gen(1) font 'Times New Roman, 24' at graph 0.50, 1.03
plot 1/0
#=================== Plot ====================
do for [k=1:stop-1] {
do for [i=1:Ny] {
do for [j=1:Nx] {
l = Nx*(i-2)+j # Lower column
m = Nx*(i-1)+j # Column focused on
n = Nx*i+j # Upper column
# Count statuses of cell(a[m])'s neighbors
if(i==1){
if(j==1){
sum = a[2]+a[Nx+1]+a[Nx+2] # Region A
} else {if(j==Nx){
sum = a[Nx-1]+a[2*Nx-1]+a[2*Nx] # Region B
} else {
sum = a[m-1]+a[m+1]+a[n-1]+a[n]+a[n+1] # Region C
}}
}
if(i==Ny){
if(j==1){
sum = a[Nx*(Ny-2)+1]+a[Nx*(Ny-2)+2]+a[Nx*(Ny-1)+2] # Region D
} else {if(j==Nx){
sum = a[Nx*(Ny-1)-1]+a[Nx*(Ny-1)]+a[Nx*Ny-1] # Region E
} else {
sum = a[l-1]+a[l]+a[l+1]+a[m-1]+a[m+1] # Region F
}}
}
if(j==1 && (i!=1 && i!=Ny)){
sum = a[l]+a[l+1]+a[m+1]+a[n]+a[n+1] # Region G
} else {if(j==Nx && (i!=1 && i!=Ny)){
sum = a[l-1]+a[l]+a[m-1]+a[n-1]+a[n] # Region H
} else {if((j>1 && j<Nx) && (i>1 && i<Ny)) {
sum = a[l-1]+a[l]+a[l+1]+a[m-1]+a[m+1]+a[n-1]+a[n]+a[n+1] # Region I
}}}
# Judge state of each cell
if(a[m]==1 && (sum<=1 || sum>=4)){
b[m] = 0
} else {if(a[m]==0 && sum == 3){
b[m] = 1
} else {
b[m] = a[m]
}}
# Update state of cells
if(b[m]==0){
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "white"
} else {
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "black"
}
}
}
# Store data of new generation in a[]
do for [x=1:N] {
a[x] = b[x]
}
# Update number of generations
set label 1 center gen(k+1) font 'Times New Roman, 24' at graph 0.50, 1.03
plot 1/0
}
set out
view raw lifegame_gif.plt hosted with ❤ by GitHub

Map of 9 Regions



Nx = 150, Ny = 75, stop = 150

Extra

Koks galaxy.plt

reset
#=================== Parameter ====================
Nx = 15 # Number of cells (width)
Ny = 15 # Number of cells (height)
N = Nx*Ny # Number of cells
#=================== Setting ====================
set terminal gif animate delay 8 size 160*Nx/4., 160*Ny/4.
set output "koks_galaxy.gif"
unset key
unset border
set xr[0:Nx]
set yr[0:Ny]
unset xtics
unset ytics
set size ratio 1
unset grid
stop = 200 # Stop time
array a[N] # Old generation
array b[N] # New generation
gen(i) = sprintf("Generations: %5d\n", i) # Counter
#=================== Draw initiate state using random ====================
do for [i=1:Ny] {
do for [j=1:Nx] {
m = Nx*(i-1)+j
if(m==49||m==50||m==51||m==52||m==53||m==54||m==56||\
m==57||m==64||m==65||m==66||m==67||m==68||m==69||\
m==71||m==72||m==86||m==87||m==94||m==95||m==101||\
m==102||m==109||m==110||m==116||m==117||m==124||\
m==125||m==131||m==132||m==139||m==140||m==154||\
m==155||m==157||m==158||m==159||m==160||m==161||\
m==162||m==169||m==170||m==172||m==173||m==174||\
m==175||m==176||m==177){
a[m] = 1
} else {
a[m] = 0
}
if(a[m]==0){
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "white"
} else {
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "black"
}
}
}
# Draw number of generations
plot 1/0
#=================== Plot ====================
do for [k=1:stop-1] {
do for [i=1:Ny] {
do for [j=1:Nx] {
l = Nx*(i-2)+j # Lower column
m = Nx*(i-1)+j # Column focused on
n = Nx*i+j # Upper column
# Count statuses of cell(a[m])'s neighbors
if(i==1){
if(j==1){
sum = a[2]+a[Nx+1]+a[Nx+2]
} else {if(j==Nx){
sum = a[Nx-1]+a[2*Nx-1]+a[2*Nx]
} else {
sum = a[m-1]+a[m+1]+a[n-1]+a[n]+a[n+1]
}}
}
if(i==Ny){
if(j==1){
sum = a[Nx*(Ny-2)+1]+a[Nx*(Ny-2)+2]+a[Nx*(Ny-1)+2]
} else {if(j==Nx){
sum = a[Nx*(Ny-1)-1]+a[Nx*(Ny-1)]+a[Nx*Ny-1]
} else {
sum = a[l-1]+a[l]+a[l+1]+a[m-1]+a[m+1]
}}
}
if(j==1 && (i!=1 && i!=Ny)){
sum = a[l]+a[l+1]+a[m+1]+a[n]+a[n+1]
}
if(j==Nx && (i!=1 && i!=Ny)){
sum = a[l-1]+a[l]+a[m-1]+a[n-1]+a[n]
}
if((j>1 && j<Nx) && (i>1 && i<Ny)) {
sum = a[l-1]+a[l]+a[l+1]+a[m-1]+a[m+1]+a[n-1]+a[n]+a[n+1]
}
# Judge state of each cell
if(a[m]==1 && (sum<=1 || sum>=4)){
b[m] = 0
} else {
if(a[m]==0 && sum == 3){
b[m] = 1
} else {
b[m] = a[m]
}
}
# Update state of cells
if(b[m]==0){
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "white"
} else {
set object m rectangle from j-1, i-1 to j, i lw 1 fc rgb "black"
}
}
}
# Store data of new generation in a[]
do for [x=1:N] {
a[x] = b[x]
}
# Update number of generations
plot 1/0
}
set out
view raw koks_galaxy_gif.plt hosted with ❤ by GitHub

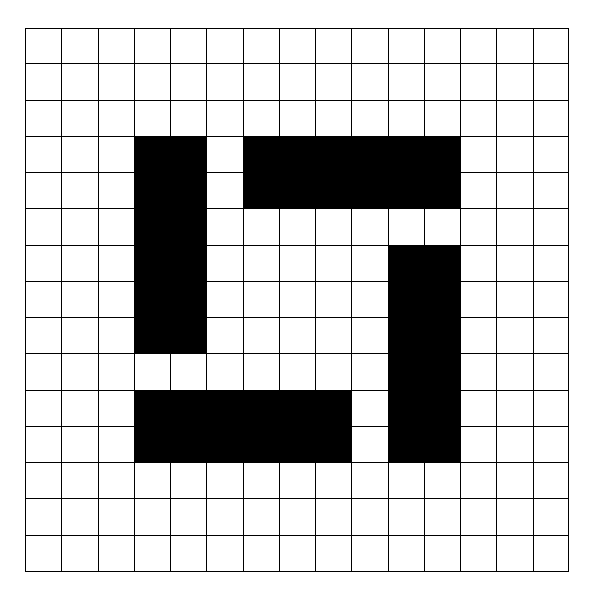

Koks galaxy.gif
